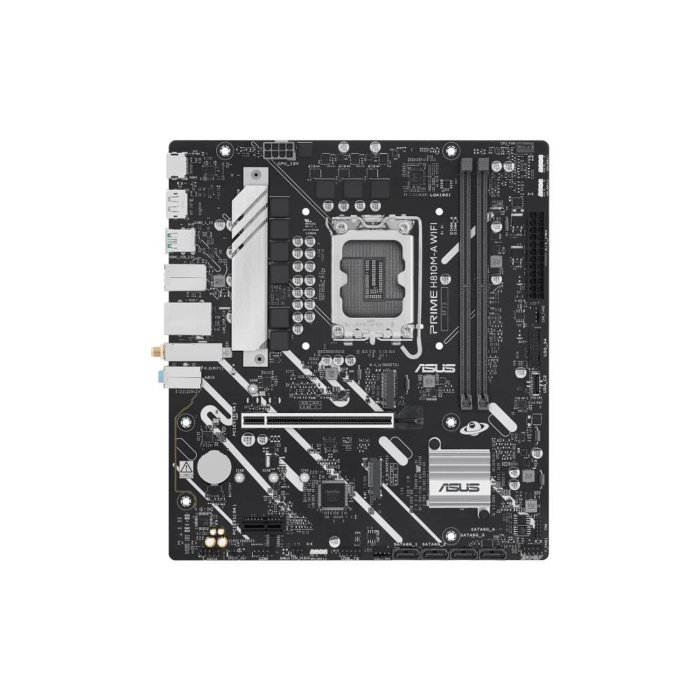

Asus Prime Intel Core Ultra H810M-A Wifi 6, Ai PC Ready DDR5 Gaming Motherboard

Asus Prime Intel Core Ultra H810M-A Wifi 6, Ai PC Ready DDR5 Gaming Motherboard

ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Wi-Fi 61×1 Wi-Fi 6 (802.11ax)Supports 2.4/5GHz frequency bandBluetooth® v5.3** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

1 x Intel® 1Gb Ethernet port*ASUS LANGuard*With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

1 x DisplayPort**1 x HDMI™ port**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.**** VGA resolution support depends on processors’ or graphic cards’ resolution.

2 x DIMM slots, max. 128GB, DDR5Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureDIMM FitSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile II (AEMP II)

Storage Compatibility

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel® H810 ChipsetM.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)4 x SATA 6Gb/s ports

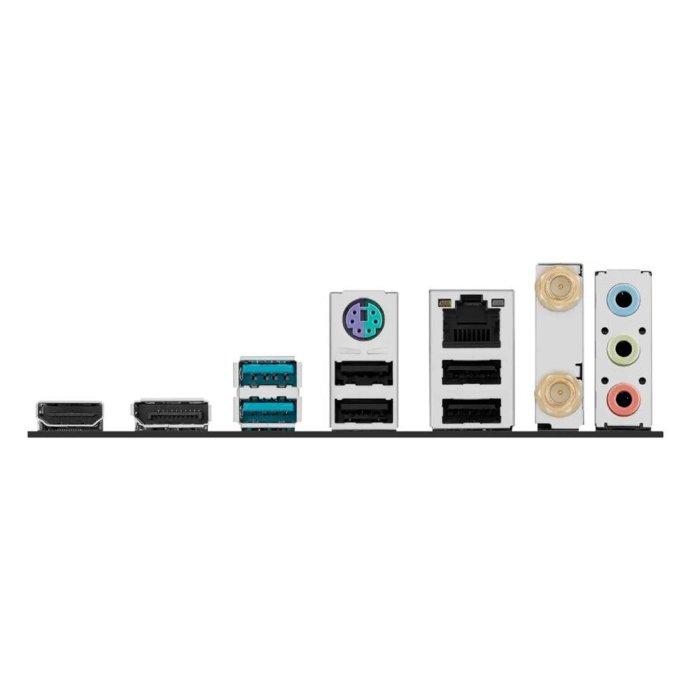

2 x USB 10Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Intel® 1Gb Ethernet port3 x Audio jacks1 x PS/2 keyboard/mouse combo port

Rear USB (Total 6 ports)2 x USB 10Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 5 ports)1 x USB 5Gbps connector (supports USB Type-C®)*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 ports* USB Type-C® power delivery output: max. 5V/3A** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Intel® Core™ Ultra Processors (Series 2)1 x PCIe 4.0 x16 slotIntel® H810 Chipset1 x PCIe 4.0 x1 slot

Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Internal I/O Connectors

Fan and Cooling Related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage Related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 portsMiscellaneous3 x Addressable Gen2 headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin Front Panel System header

ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage protection- SafeSlot Core+- Stainless-steel back I/OASUS Q-Design- Q-DIMM- Q-Dashboard- Q-LED Core- Q-SlotASUS Thermal Solution- VRM heatsink designAura Sync- Addressable Gen 2 headers

Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS Wi-Fi moving antenna1 x Q-connector2 x M.2 Rubber Packages1 x Screw package for M.2 SSDDocumentation1 x User guide

1 Year ( As per Manufacturer Policy )
