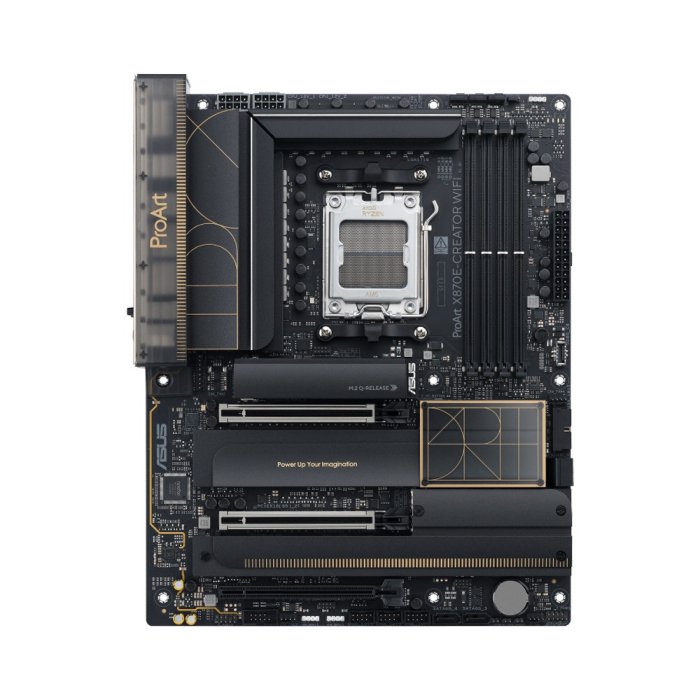

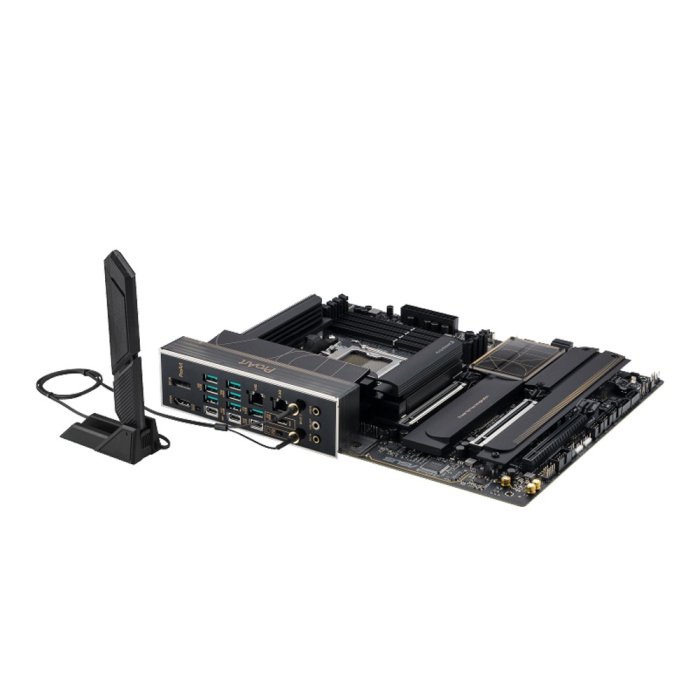

Asus ProArt X870E-Creator AMD Ryzen Wifi7 Ai Gaming MotherBoard

ProArt X870E-CREATOR WIFI

ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Wi-Fi 7*2×2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.Bluetooth® v5.4****Wi-Fi features may vary depending on the operating systemFor Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

1 x Marvell® AQtion 10Gb Ethernet1 x Intel® 2.5Gb EthernetASUS LANGuard

4 x DIMM slots, max. 192GB, DDR5Support up to8000+MT/s(OC) with Ryzen™ 9000 Series Processors,8000+MT/s(OC) with Ryzen™ 8000 Series Processors,8000+MT/s(OC) with Ryzen™ 7000 Series Processors,ECC and Non-ECC Un-buffered DIMMDual Channel Memory ArchitectureSupports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP)

Storage Compatibility

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen™ 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_2 slot is not supported AMD X870E ChipsetM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* PCIEX16(G5)_2 slot shares bandwidth with M.2_2.

2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)1 x USB 20Gbps port (1 x USB Type-C®)7 x USB 10Gbps ports (7 x Type-A)1 x USB 2.0 port (1 x Type-A)1 x DisplayPort (Input only)1 x HDMITM port1 x Wi-Fi Module1 x Marvell® AQtion 10Gb Ethernet1 x Intel® 2.5Gb Ethernet3 x Audio jacks1 x BIOS FlashBack™ button1 x Clear CMOS button

USB Ports Front (Support )

Rear USB (Total 11 ports)2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)1 x USB 20Gbps port(s) (1 x USB Type-C®)7 x USB 10Gbps port(s) (7 x Type-A)1 x USB 2.0 port (1 x Type-A)Front USB (Total 9 ports)1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)**1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports3 x USB 2.0 headers support 6 additional USB 2.0 ports”* USB Type-C® power delivery output: max. 5V/3.0A”** USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)AMD Ryzen™ 8500 & 8300 Series Desktop Processors*1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled)AMD X870E Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*Audio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers- Unique de-pop circuit* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Internal I/O Connectors

Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorStorage related4 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports3 x USB 2.0 headers support 6 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Chassis Intrusion header1 x COM Port header1 x CPU Over Voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x 10-1 pin System Panel header1 x Thermal Sensor header

ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design)- Enhanced DRAM Overcurrent Protection- ESD Guards- LANGuard- Overvoltage Protection- Safeslot- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsinks- VRM heatsink design ASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- Addressable Gen 2 headersBespoke Motherboard Design & Business Focused Features- 24/7 Reliability- Overcurrent ProtectionFront Panel USB 20Gbps with Quick Charge 4+ Support- Support: up to 30W fast charging and USB Wattage Watcher- Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A- Compatible with PD3.0

Cables1 x DisplayPort cable4 x SATA 6Gb/s cablesAdditional Cooling Kit1 x Thermal pad for M.2 22110Miscellaneous1 x ASUS WiFi Q-Antenna1 x Q-connector1 x M.2 Q-Latch package1 x M.2 Q-Latch Q-Slide package for M.2 backplate2 x Rubber Packages for M.21 x ProArt rulerDocumentation1 x Quick start guide1 x ACC Express Activation Key Card

Product Size ( Dimension )

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

1 Year ( As per Manufacturer Policy )
