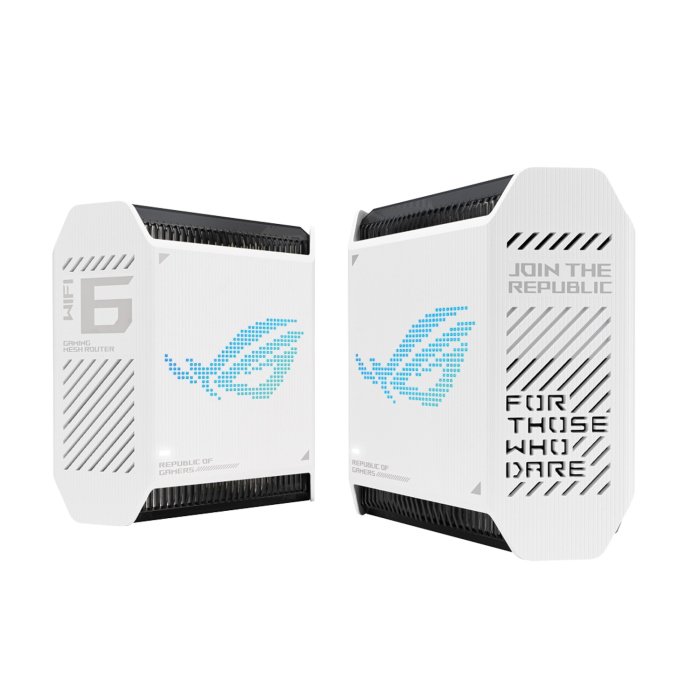

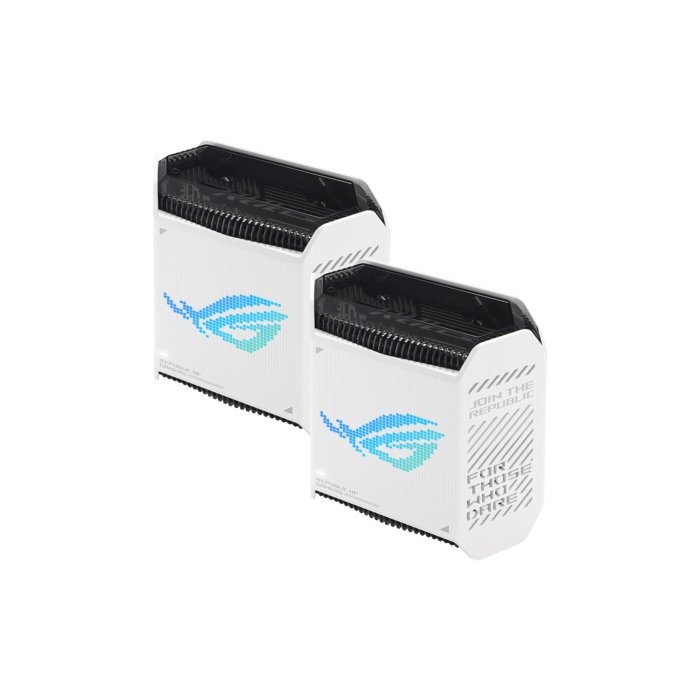

Asus ROG Rapture GT6 WiFi 6 Tri-Band Gaming Mesh System ( Pack of 2) – White

Asus ROG Rapture GT6 WiFi 6 Tri-Band Gaming Mesh System (Pack of 2)

WiFi 6 (802.11ax)IPv4IPv6Backwards compatible with 802.11a/b/g/n/ac Wi-Fi

AX10000 ultimate AX performance

2.4GHz AX: 2×2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps5G-1Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps5G-2Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

2.4GHz 2x25GHz-1 4x45GHz-2 4×4

1.7GHz tri-core processor

256MB Flash512MB DDR4 RAM

OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal1024-QAM high data rate20/40/80/160 MHz bandwidth* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

2.4G Hz5 GHz-15 GHz-2

Wireless router modeAccess point mode

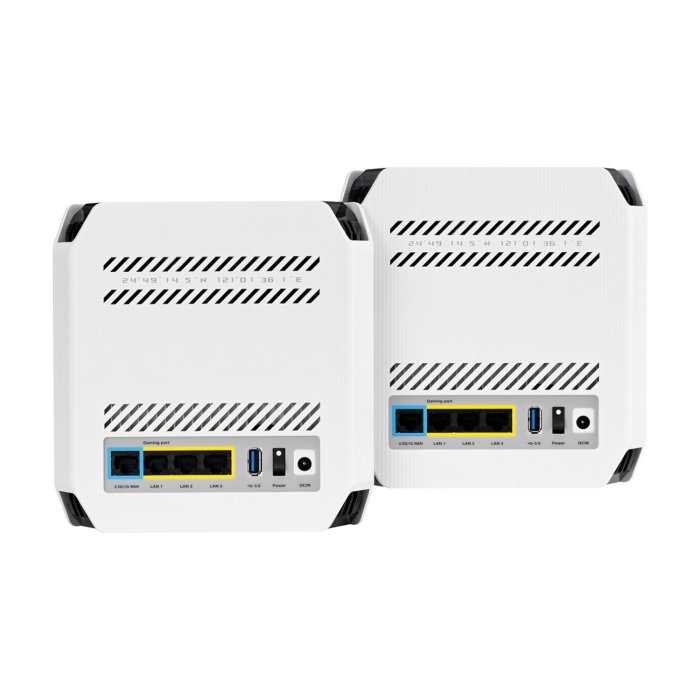

1 x 2.5 Gigabit WAN Port3 x Gigabit LAN Ports1 x USB 3.2 Gen 1×1 Port

WPS ButtonReset ButtonPower Switch

AC Input : 110V~240V(50~60Hz)DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current

AiMesh• Primary AiMesh Router• AiMesh Node

Game Boost / AccelerationGame RadarWTFastROG_FirstOpenNAT (Game Profile)Gaming Port

“Allow you to block access to unwanted websites and apps.”Parental Control Customized Internet Schedule

“The Guest Network provides Internet connection for guests but restricts access to your local network.”Guest Network Connection time limit

MU-MIMOUTF-8 SSIDWiFi MAC Address Filter• Maximum MAC Filters : 64Wireless SchedulerWi-Fi RadarAirtime FairnessRADIUS ClientUniversal BeamformingExplicit Beamforming

Dual WAN3G / 4G LTE Dongle4G / 5G Auto Mobile TetheringPort Forwarding• Maximum Port Forwarding Rule : 64Port Triggering• Maximum Port Triggering Rule : 32DMZDDNSNAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay

DHCP ServerIGMP SnoopingIPTVLAN Link AggregationManually Assign IP AddressWake on LAN (WOL)

WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open SystemWPSLet’s EncryptDNS-over-TLSSSHSecurity ScanFirewall• Maximum Firewall Keyword Filter : Max 64 rules• Maximum Firewall Network Service Filter : Max 32 rules• Maximum Firewall URL Filter : Max 64 rules

4G / 5G Auto Mobile TetheringFile System : HFS+, NTFS, vFAT, ext2, ext3, ext4Safely Remove DiskAiCloudDownload MasterAiDiskMedia ServerTime MachineSamba ServerFTP ServerShared Folder Privileges

Configuration Backup and RestoreDiagnosis ToolsFeedback SystemSystem LogNew Device Connect NotificationLogin CaptchaConnection DiagnosisAuto Firmware Update

ROG Rapture GT6RJ-45 CablePower AdapterQuick Start GuideWarranty Card

1 Year ( As per Manufacturer Policy )
