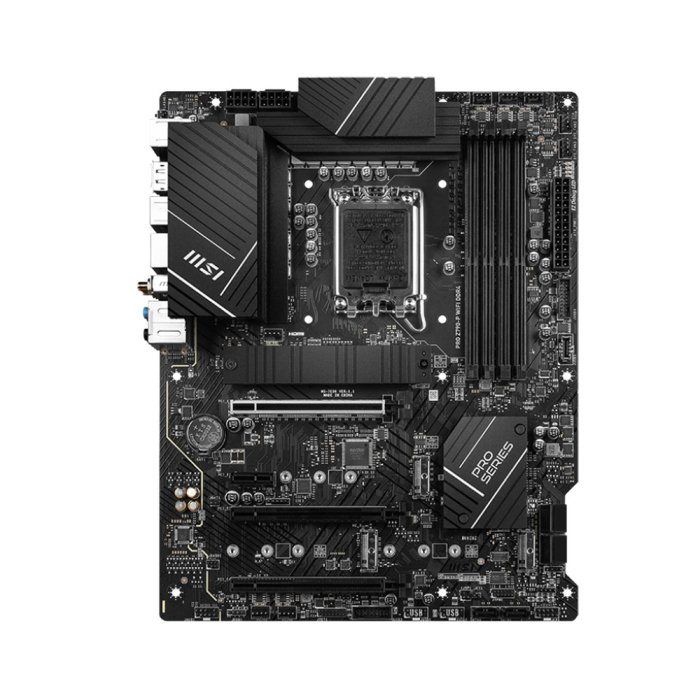

MSI Intel PRO Z790-P WIFI DDR5 LGA 1700 ATX MotherBoard

High-Performance Foundation for Intel Core

The MSI PRO Z790-P WIFI DDR5 is a professional-grade ATX motherboard designed to support 12th, 13th, and 14th Gen Intel Core processors. Built on the Intel Z790 chipset, it offers a robust platform for users who require high-speed DDR5 memory and next-generation PCIe 5.0 connectivity. Whether for intensive office productivity, content creation, or high-end gaming, this board provides the stability and speed necessary to handle demanding modern workloads.

Advanced Power and Thermal Management

Next-Gen Connectivity and Networking

To sustain peak performance under heavy loads, the PRO Z790-P features a 14+1+1 Duet Rail Power System with 55A DrMOS, ensuring clean and consistent power delivery to the CPU. Cooling is managed by an extended heatsink design and high-quality 7W/mK MOSFET thermal pads that efficiently dissipate heat from the voltage regulator modules. Additionally, the M.2 Shield Frozr prevents thermal throttling on high-speed NVMe SSDs, keeping your storage running at maximum velocity during long sessions.

Equipped with the latest industry standards, this motherboard features a Lightning Gen 5 PCIe slot for future-proof graphics card compatibility and four M.2 slots for rapid storage expansion. Networking is handled by a premium 2.5G LAN and Wi-Fi 6E solution, which supports the 6GHz band for lower latency and faster wireless speeds. For external peripherals, the rear I/O includes a ultra-fast USB 3.2 Gen 2×2 Type-C port, capable of 20Gbps data transfer speeds.

Key Specifications

CPU Socket: LGA 1700 (Supports Intel 12th, 13th, and 14th Gen)

Chipset: Intel Z790

Memory Support: 4x DDR5 DIMM slots (Up to 192GB / 256GB, 7000+ MHz OC)

Expansion Slots: * 1x PCIe 5.0 x16 slot (Primary)

1x PCIe 4.0 x16 slot (x4 mode)

2x PCIe 3.0 x1 slots

Storage: * 4x M.2 Gen4 x4 slots

6x SATA 6Gb/s ports

Networking: Intel Wi-Fi 6E & Bluetooth 5.3 + 2.5Gbps LAN

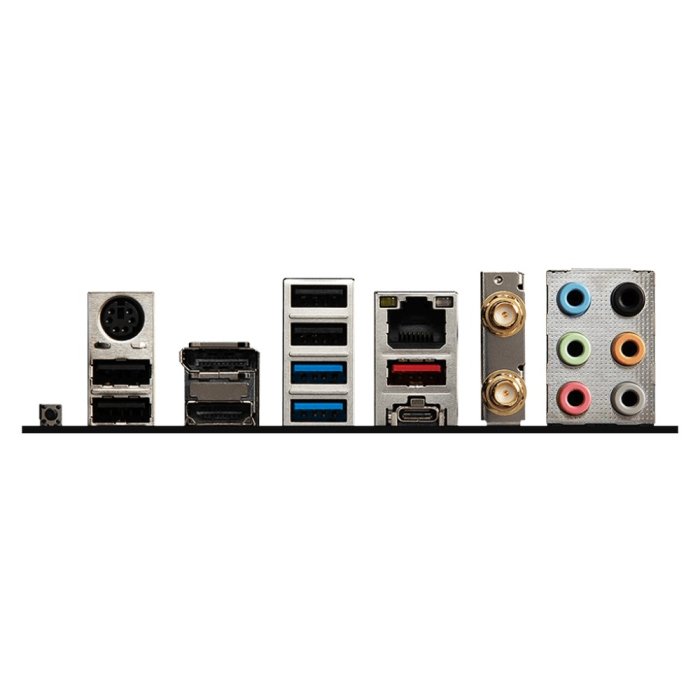

USB Ports: 1x USB 3.2 Gen 2×2 (Type-C), 1x USB 3.2 Gen 2, 2x USB 3.2 Gen 1, 4x USB 2.0

Audio: Realtek ALC897 7.1-Channel High Definition Audio

Form Factor: ATX (12 in. x 9.6 in.)

• CPU Socket: LGA 1700 (Supports Intel 12th, 13th, and 14th Gen)
• Chipset: Intel Z790
• Memory Support: 4x DDR5 DIMM slots (Up to 192GB / 256GB, 7000+ MHz OC)
• Expansion Slots: * 1x PCIe 5.0 x16 slot (Primary) 1x PCIe 4.0 x16 slot (x4 mode) 2x PCIe 3.0 x1 slots
• 1x PCIe 4.0 x16 slot (x4 mode)
• 2x PCIe 3.0 x1 slots
• Storage: * 4x M.2 Gen4 x4 slots 6x SATA 6Gb/s ports
• 6x SATA 6Gb/s ports
• Networking: Intel Wi-Fi 6E & Bluetooth 5.3 + 2.5Gbps LAN
• USB Ports: 1x USB 3.2 Gen 2×2 (Type-C), 1x USB 3.2 Gen 2, 2x USB 3.2 Gen 1, 4x USB 2.0
• Audio: Realtek ALC897 7.1-Channel High Definition Audio
• Form Factor: ATX (12 in. x 9.6 in.)

• 1x PCIe 4.0 x16 slot (x4 mode)
• 2x PCIe 3.0 x1 slots
