Space is never a problem
Whether youÂ’re a creator, enthusiast, gamer, or simply a regular user, the Tower 500 is designed for you.
Modeled after our legendary Tower 900 super chassis, the Tower 500 was created with the direction of inheriting all the significant functions while minimizing the overall footprint. On top of that, the Tower 500 allows additional support for an All-In-One liquid cooler, support for an E-ATX motherboard (max 12”x 12”), or any ATX motherboard. Users can build their PC the way they want.
Create and display your dream build
Test System
Powerful cooling performance for 360mm AIOs
The enclosed radiator bracket can be installed on the right side, supporting up to a 360mm All-in-One radiator or any LCS radiators under 399mm. The space is sufficient for a push-pull configuration, with a total of six fans installed on the radiator to pursue extreme performance. The right-side panel can also be flipped 180 degrees to allow direct heat extraction from the mesh and further enhance ventilation.
Say goodbye to heat congestion
The vertical design of the Tower Series products adopts a chimney effect design to direct the heat vertically. With the Tower 500Â’s reimagined thermal design, you can pursue extreme system performance without worries.
WeÂ’ve tested everything, so you donÂ’t have to
At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The Tower 500 products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.
CPU?Intel Core i9 12900K (TDP 125W/OC 241 W)
M/B?ASUS ROG MAXIMUS Z690 HERO
GPU?GIGABYTE AORUS GeForce RTX™ 3090 XTREME
RAM?TOUGHRAM Z-ONE RGB DDR5 64G (16G x 4)
SSD?Plextor PX-128M6V
PSU?Toughpower TF1 1550W-TT Premium Edition
CPU Cooler?TOUGHLIQUID Ultra 360 All-In-One Liquid Cooler
FANs? AIO: TOUGHFAN Turbo 120mm x 3
Chassis: Standard Fan x 2 (Rear)
Brilliant airflow & Incredible performance
Thermal images were taken during thermal testing. As you can see in the below photos, we were able to ensure that the cold air intakes and hot air exhausts are well-developed when designing this chassis, ensuring the interior temperature stays low and stable at all times.
Blow your world away with 2 powerful pre-installed cooling fans
2 x 120mm pre-installed rear fans were tested to be placed at specific positions to enhance cooling performance, preventing overheating for the CPU and GPU.
The Tower 500 has a new fan bracket that can be either installed vertically or horizontally to house 2 extra 120mm fans or a 240mm radiator.

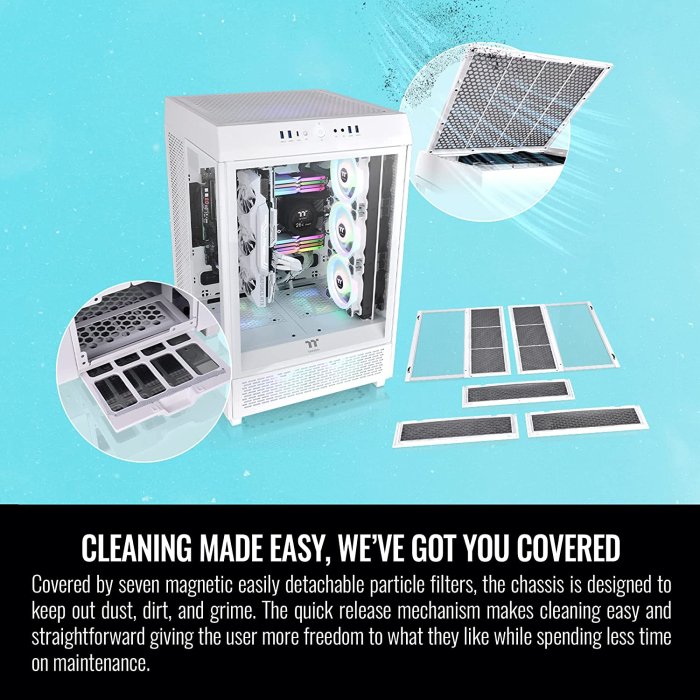

Covered by seven magnetic easily detachable particle filters, the chassis is designed to keep out dust, dirt, and grime. The quick release mechanism makes cleaning easy and straightforward giving the user more freedom to what they like while spending less time on maintenance.
The equipped HDD bracket for 3.5” or 2.5” hard drives can be expanded to mount up to eight 3.5” HDDs or four 3.5” HDDs plus eight 2.5” SSDs for additional space-saving.
| Model No | Thermaltake Tower 500 Vertical Mid Tower Case |
| Part No | CA-1X1-00M6WN-00 |
| Color | Snow White |
| Case Size | Mid Tower |
| Side Panel | 4mm Tempered Glass x 3 |
| Material | SPCC |
| Motherboard Support | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),12” x 9.6” (ATX), 12” x 12” (E-ATX) |
| Pre-installed Fans | Rear(exhaust):120 x 120 x 25 mm ARGB fan (1500rpm, 35.8 dBA) x 2 |
| Additional Fan Support | Top:2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmRight Side:3 x 120mm, 2 x 120mm, 1 x 120mmRear:2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmPower Cover:2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmBottom(Vertical/Horizontal):2 x 120mm, 1 x 120mm |
| Radiator Support | Top:1 x 240mm, 1 x 120mm1 x 280mm, 1 x 140mmRight Side:1 x 360mm or 1 x 360mm Custom LCS radiator (max length 399mm), 1 x 240mm, 1 x 120mmBottom(Vertical/Horizontal):1 x 240mm, 1 x 120mm |
| SSD/HDD Support | 4 x 3.5”, 8 x 2.5”or 8 x 3.5” |
| I/O Ports | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 |
| EXPANSION SLOTS | 9 |
| CPU Cooler Limitation | 275mm |
| VGA Limitation | 325mm(With power cover)355mm(Without power cover) |
| PSU Limitation | 200mm |

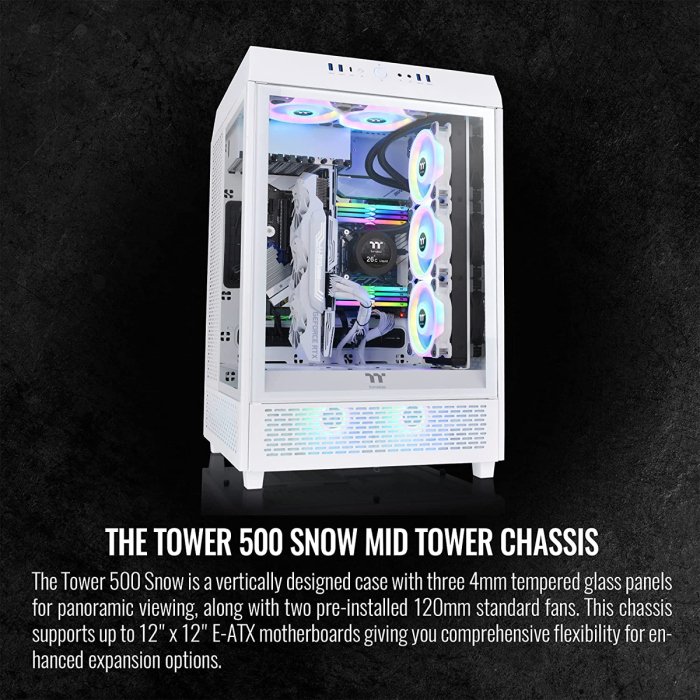

| Special Features | The Tower 500 Snow is a vertically designed case with three 4mm tempered glass panels for panoramic viewing, along with two pre-installed 120mm ARGB fans. This chassis supports up to 12″ x 12″ E-ATX motherboards giving you comprehensive flexibility for enhanced expansion options. It can also be paired with a separately sold LCD panel kit with a 3.9″ LCD Display for maximizing the PC’s visual effects. |
| Product Size ( Dimension ) | 608 x 388 x 398 mm(23.9 x 15.3 x 15.7 inches) |
| Net Weight | 14.8 kg / 32.6 lbs. |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
